Sampling Sequence
Internal Components
Sampling System

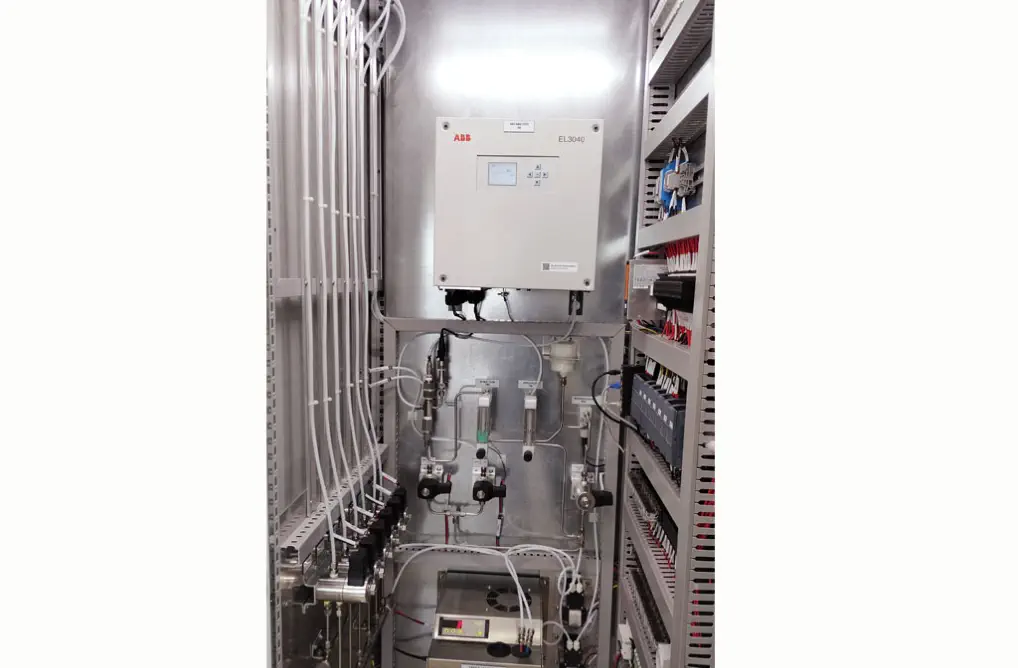

Gas Analyzer Cabinet
Sampling process
Hardware
•
S7-1200 series PLCs with modbus communication
•
Operator Touch Panel Interface with web based server,
•
Solenoid valves
•
Gas filter
•
Sampling Gas Cooler
•

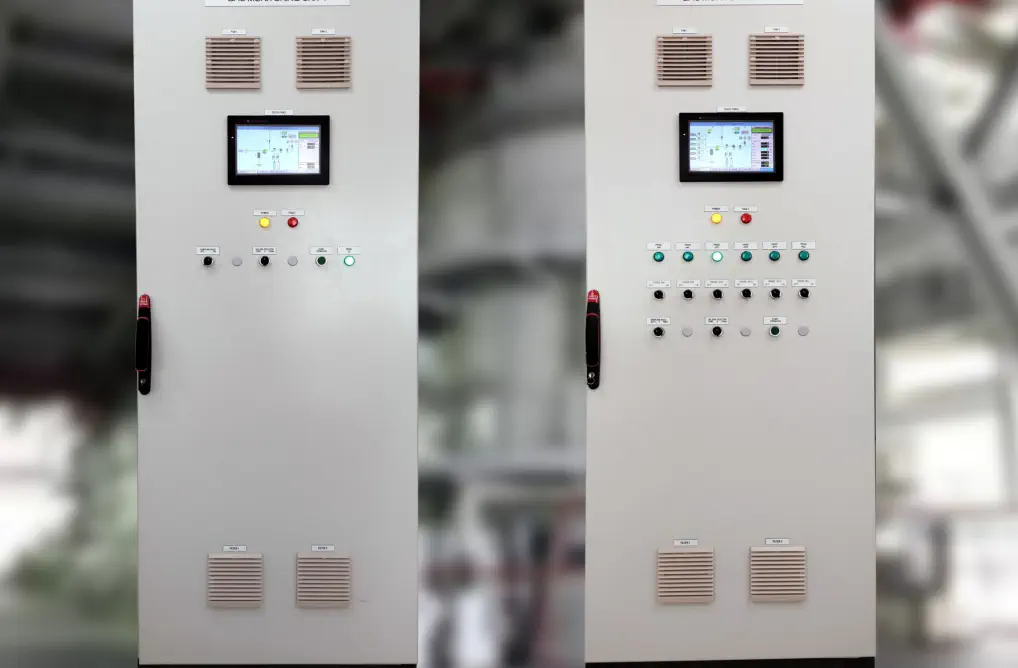

PLC Enclosures
Software
•
SIEMENS Simatic Step7
•

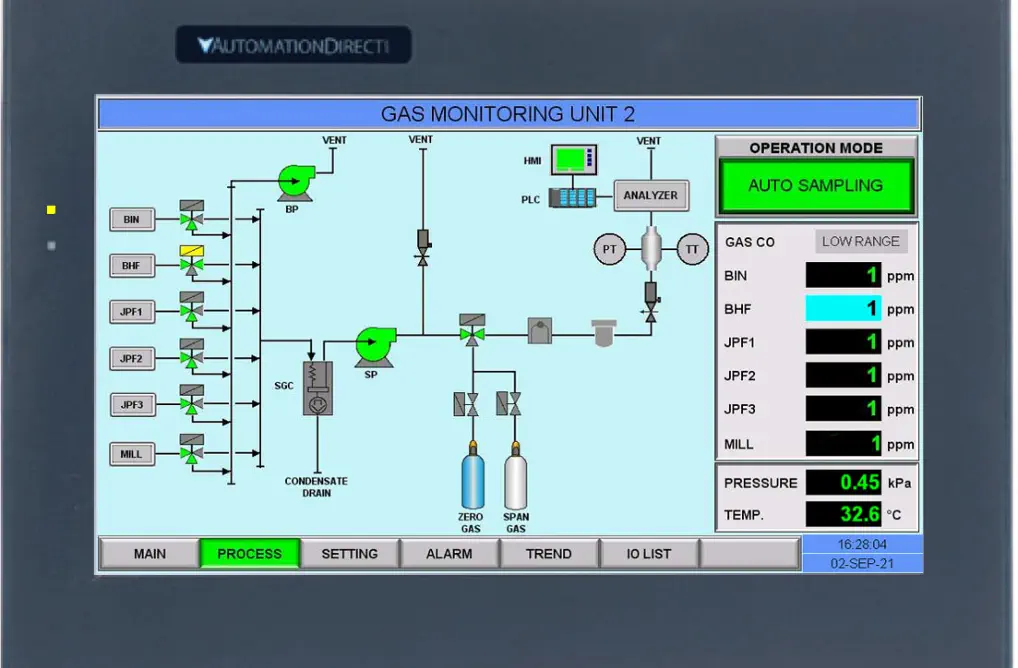

C-More HMI from AumationDirect USA
Scope of Work
Panel Fabrication, Assembly, Wiring, Testing, Program Development, FAT, SAT and
Commissioning.
Location
Padang, West Sumatera
Gas
Analyzer
cabinet
complete
with
sampling
system
for
CO,
O2
Using
ABB
Analyzer
EL3040
with
multi
stream
sampling
system
in
Coal Mill
Copyrights and designed by PT. IndoSCADA Perkasa Jaya
Hardware
•
S7-1200 series PLCs with modbus communication
•
Operator Touch Panel Interface with web based server,
Software
•
C-More HMI from AumationDirect USA
Scope of Work
Panel Fabrication, Assembly, Wiring, Testing, Program Development, FAT, SAT and
Commissioning.
Location
Gas Analyzer cabinet complete with sampling system for CO, O2 Using ABB Analyzer EL3040 with multi stream sampling system in Coal Mill
