Copyrights and designed by
PT. IndoSCADA Perkasa Jaya

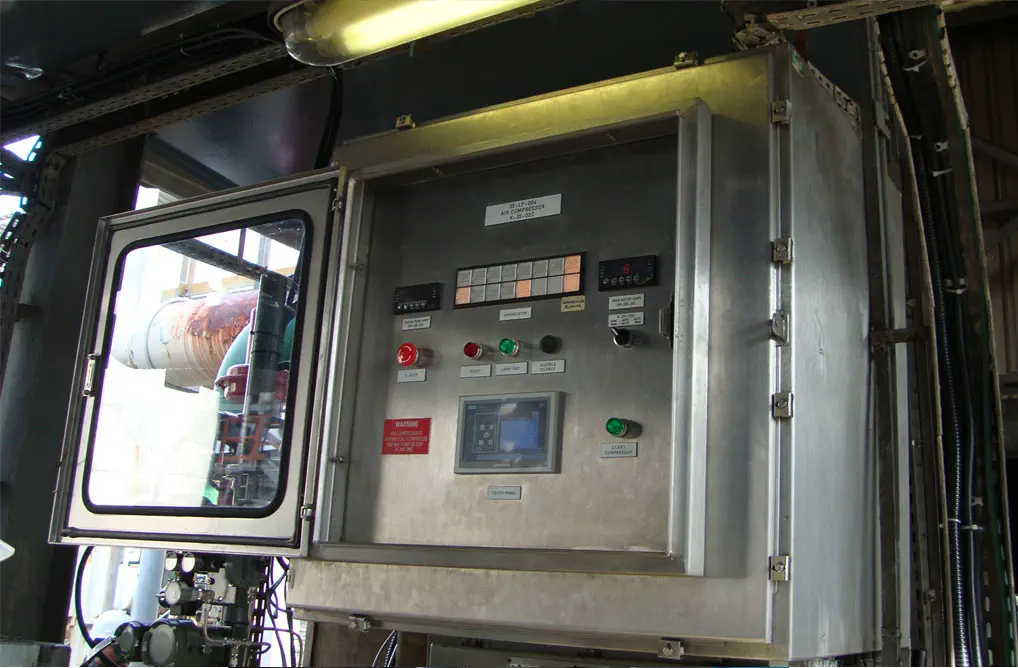

Local Unit

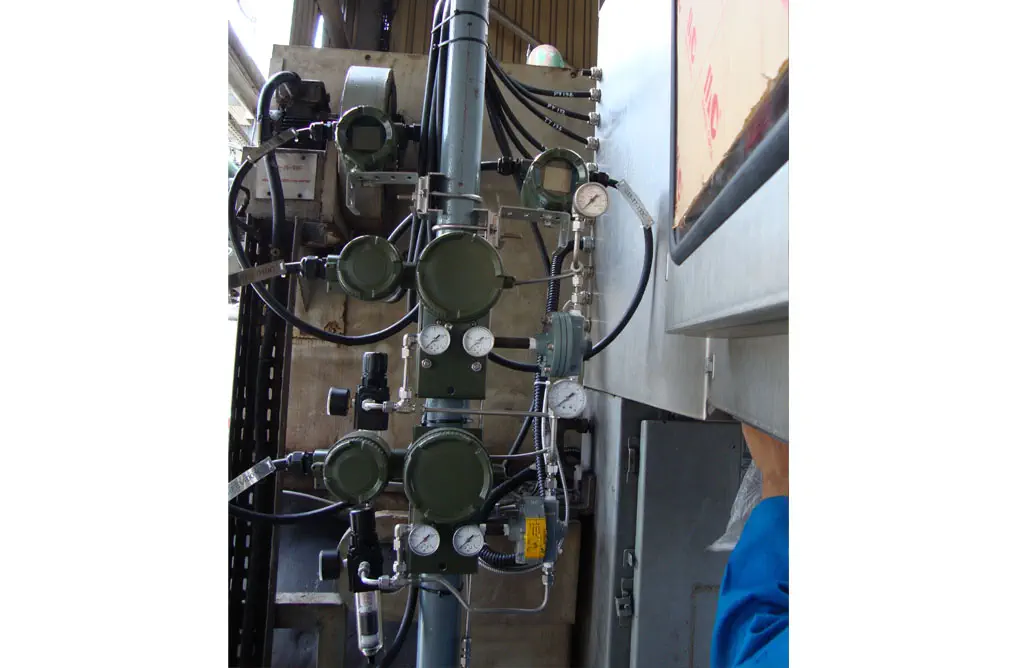

Field Instrument

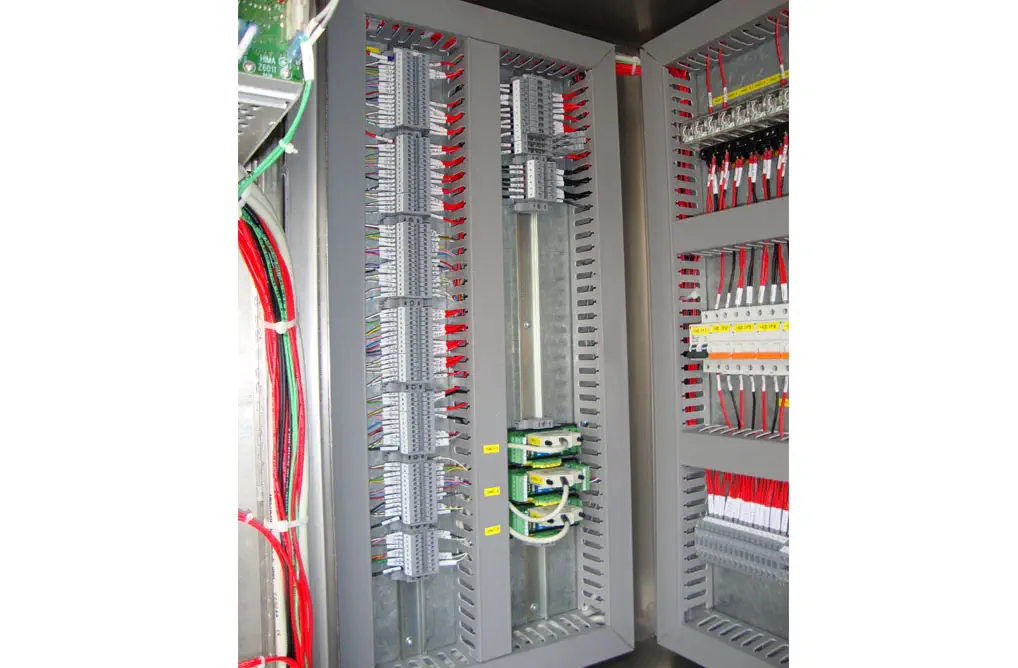

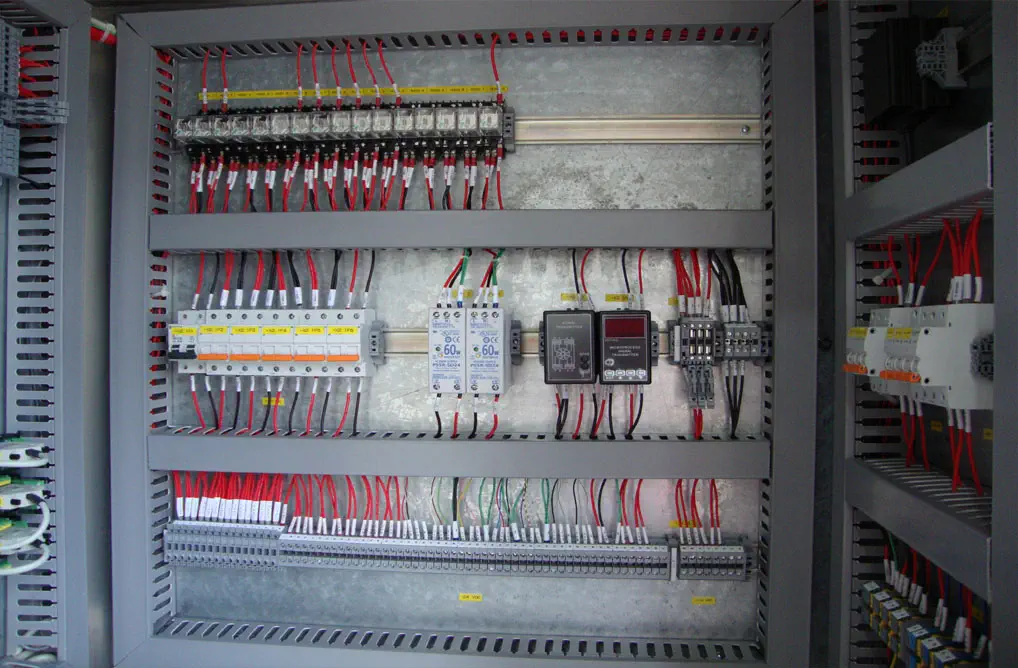

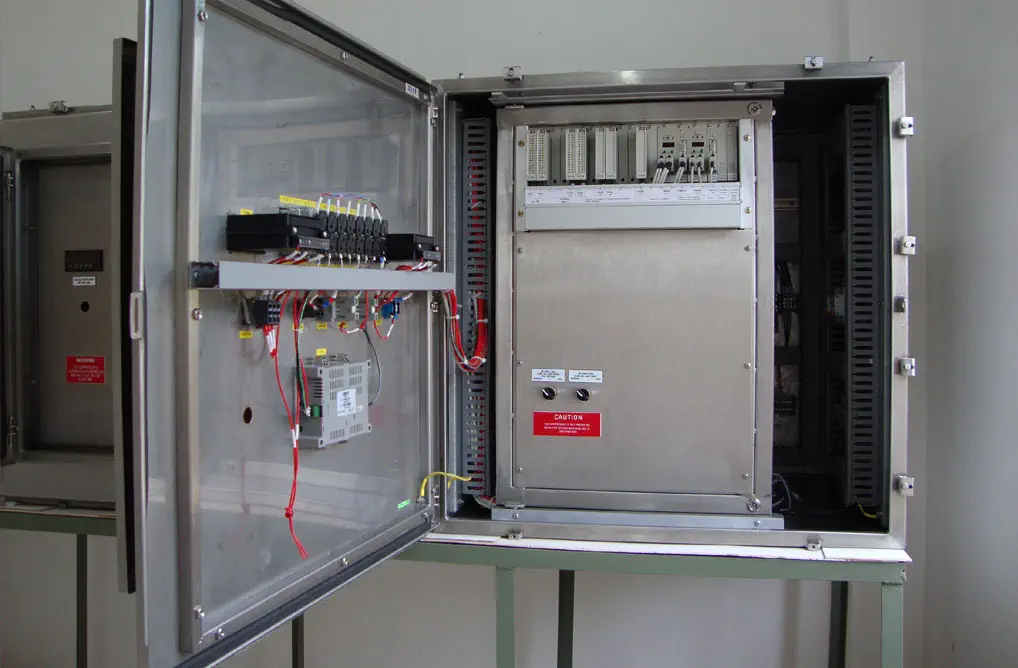

Internal Components
Internal Components

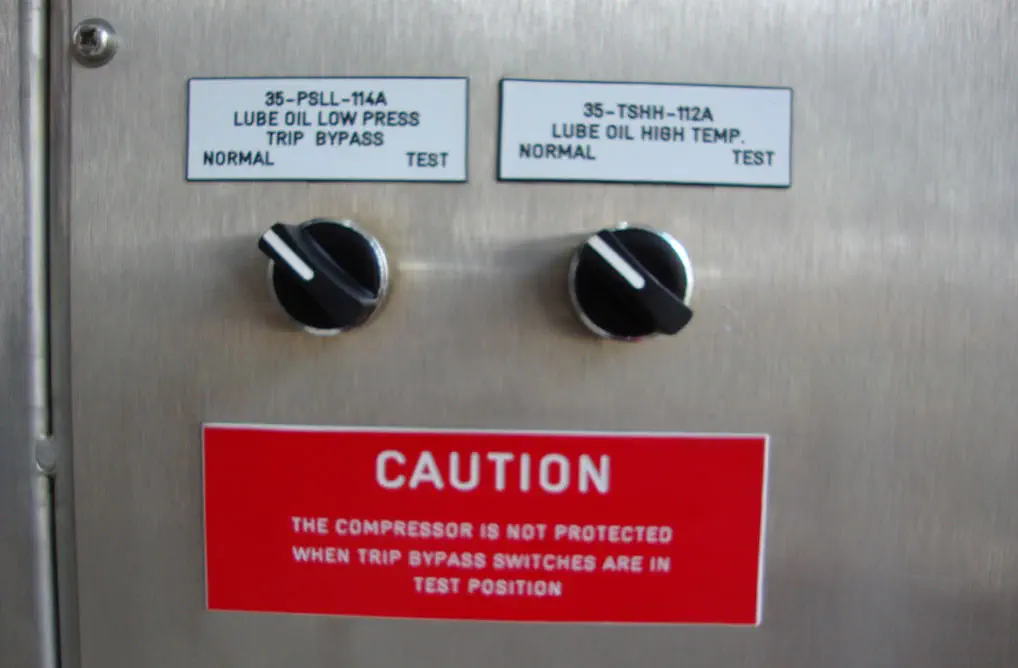

Compressor Bypass Switch
Warning Label
HIMA H41q-H

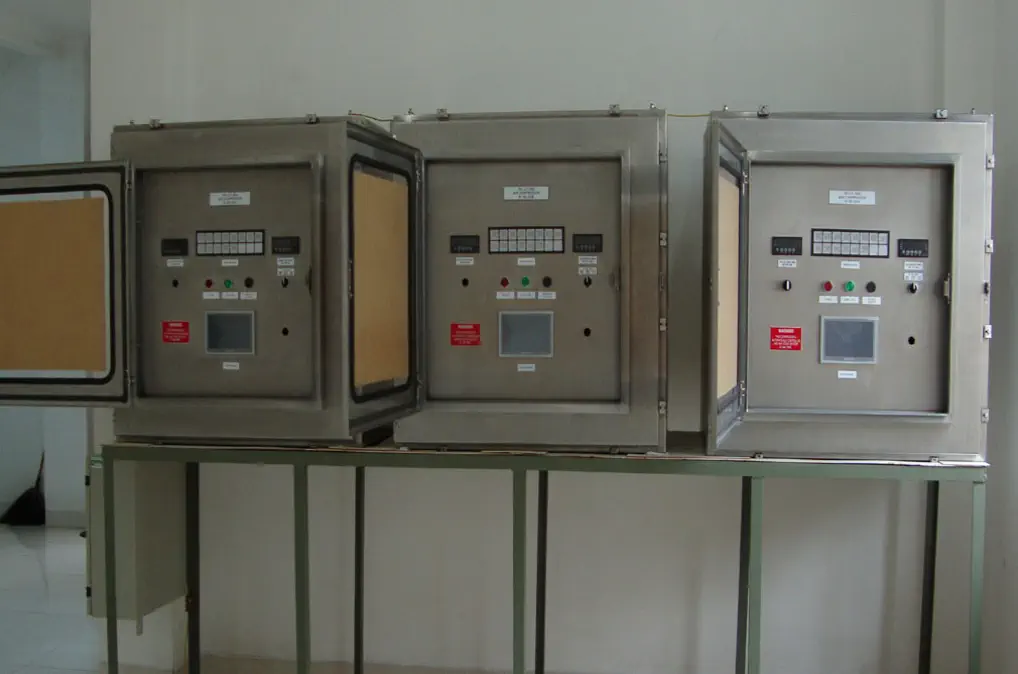

3x PLC Cabinet
HMI Master Station

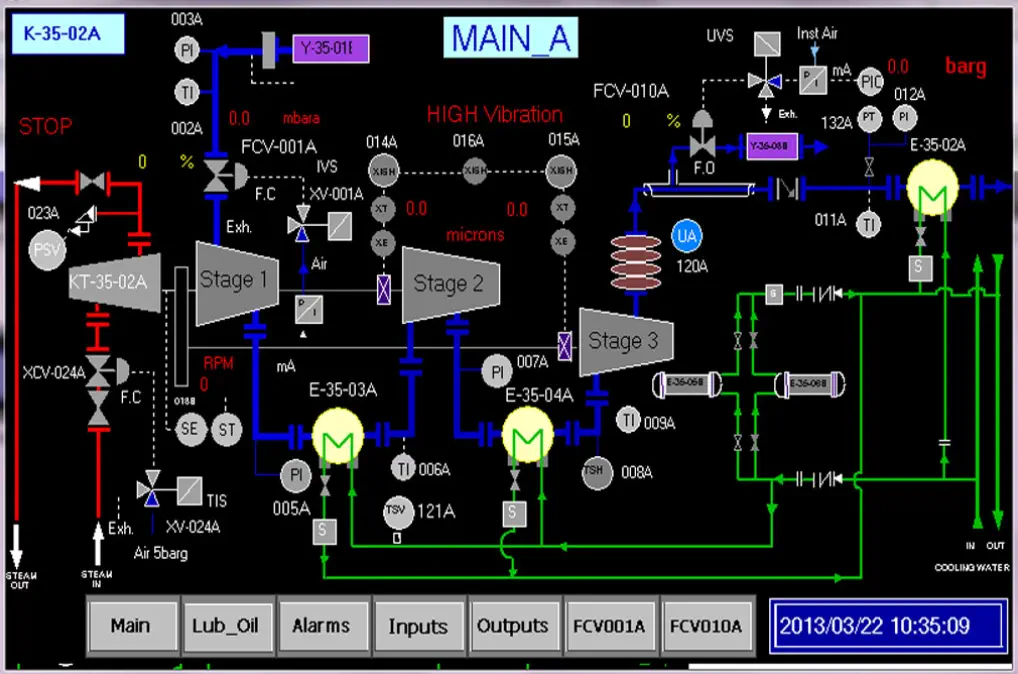

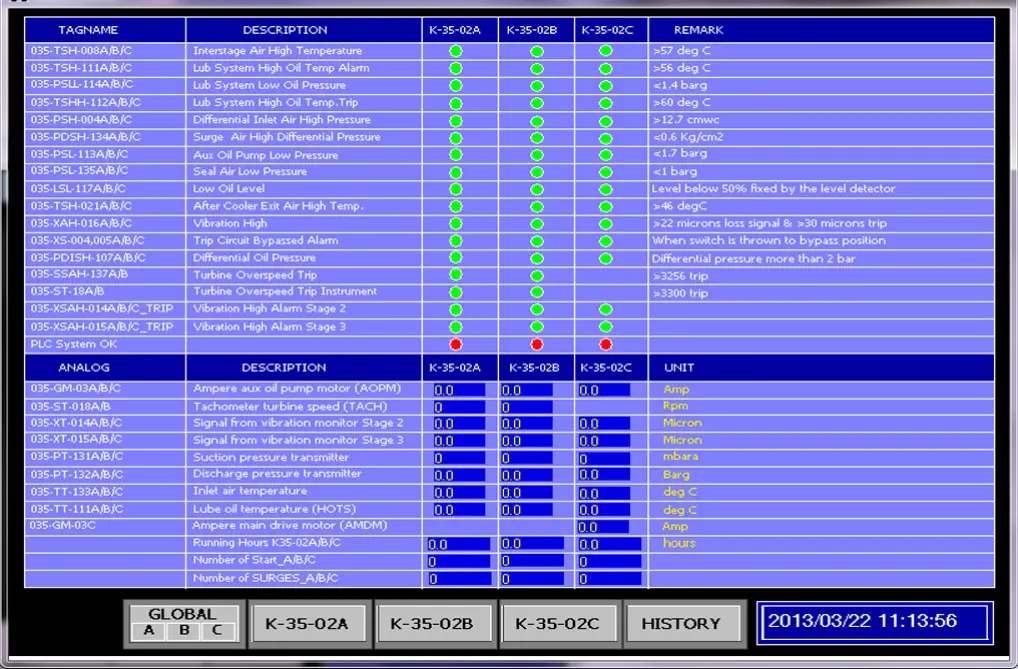

Compressor HMI Main view
Hardware
•
3 HIMA HiQuad H41q-H Redundant CPUs
•
Redundant Power Supplies
•
Redundant Communications
•
Modbus RS485 Network
•
CIMON Touch Panel 10", IP65
•
Outdoor Cabinet
•
Cable Tray and Cable Laying, Field Instrumentation, Vibration Analyzers etc.
Software
•
HIMA ELOP II Programming Software
•
CIMON Software for Graphics
Scope of Work
Panel fabrication, Program Development for Compressor Control and Protection, Anti
surge Control, Commissioning, SAT etc.
Location
Balikpapan, East Kalimantan
PLC
System
for
Plant
Air
Compressor
Protection
System,
Oil
Refinery Unit, Balikpapan
Copyrights and designed by PT. IndoSCADA Perkasa Jaya
Compressor Bypass Switch
Compressor HMI Main view
Hardware
•
3 HIMA HiQuad H41q-H Redundant CPUs
•
Cable Tray and Cable Laying, Field Instrumentation, Vibration Analyzers etc.
Software
Scope of Work
Panel fabrication, Program Development for Compressor Control and Protection, Anti
surge Control, Commissioning, SAT etc.
Location
PLC System for Plant Air Compressor Protection System, Oil Refinery Unit, Balikpapan
