Hardware
•
HIMA HiQuad H41q-H Systems Cabinet
•
Outdoor Local SS316 Cabinets
•
Solenoid Operation for REXROTH Hydraulic Drive for Non-return Valves with counter
•
Pressure Transmitter, Flowmeter, Temperatur Transmitter, Limit Switch, etc.
•
CIMON Touch Panel
•
Operator Work Station PC
•
Modbus Networking to HMI,
Software
•
HIMA ELOP II Software SIL3 Program Development
•
CIMON Software for Local Panel Graphics
•
Wonderware for Trending, History Manager, etc
•
Modbus
Memory
Mapping
to
Touch
Panel
and
Redundant
Wonderware
SCADA
Node
and Remote Node
Scope of Work
Panel Fabrication, Assembly, Wiring, Testing, Program Development, FAT, Installation,
SAT and Commissioning.
Location
Balikpapan, East Kalimantan
Operator Station
System PLC

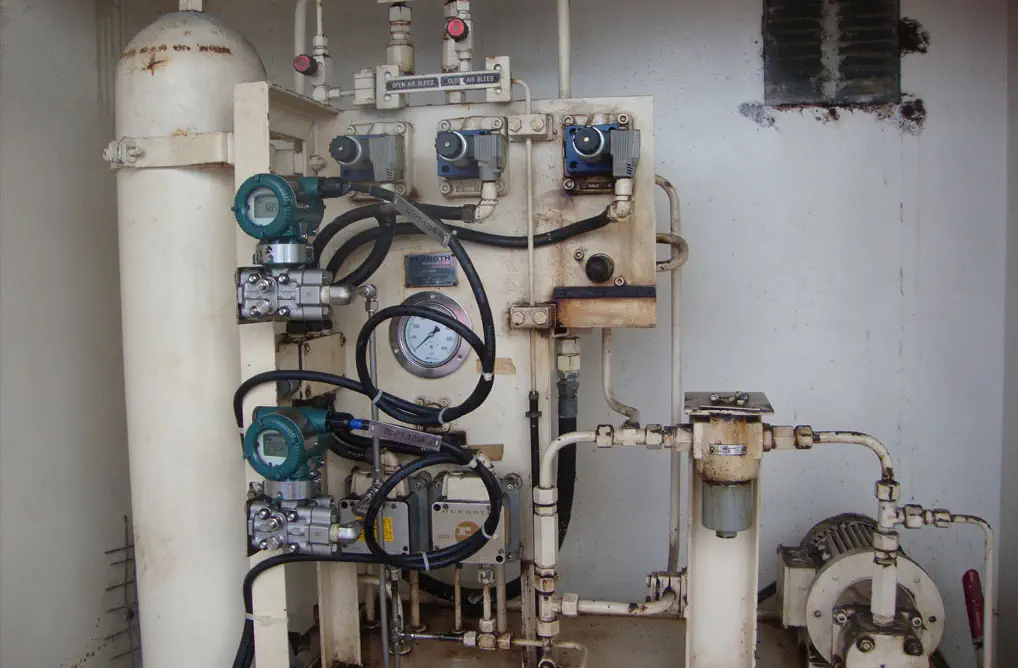

Hydraulic Instruments

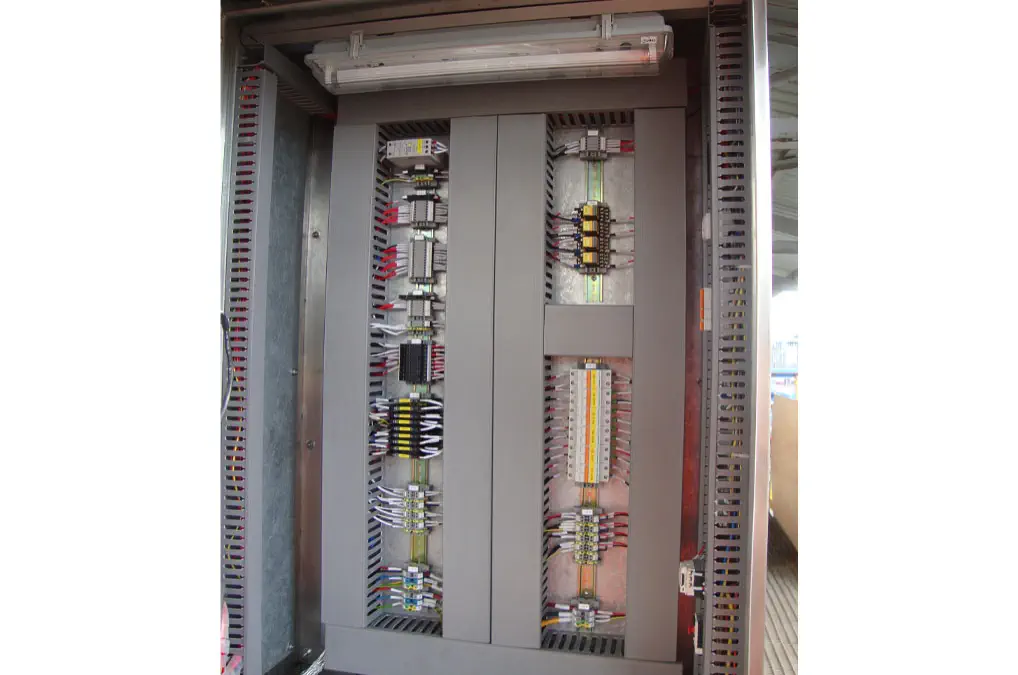

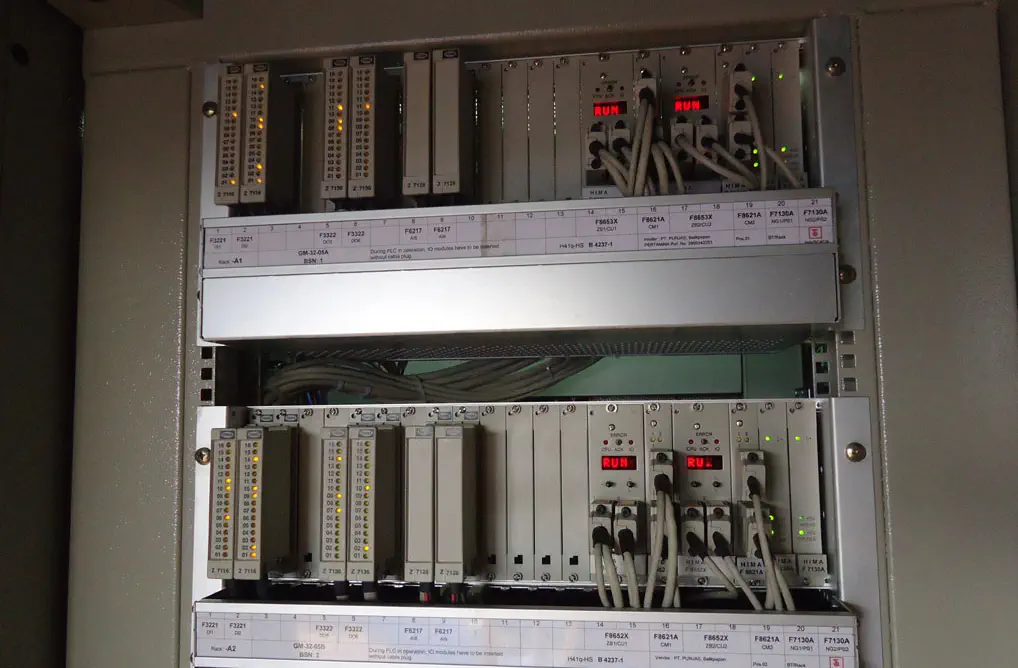

Local Panel Internal Components

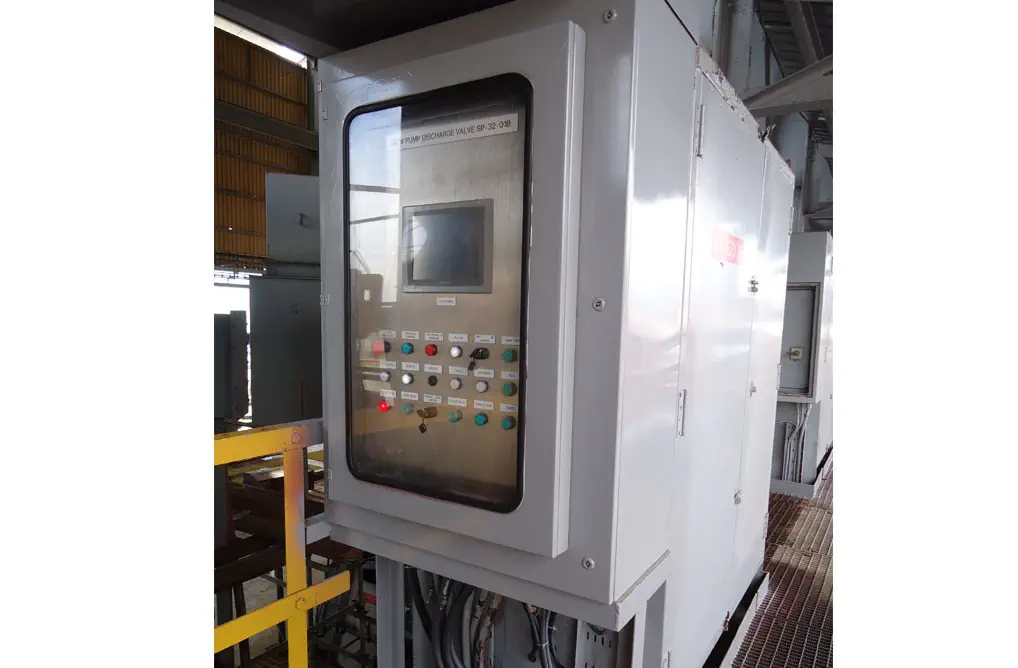

Local Panel
Local Panel Motor Switch

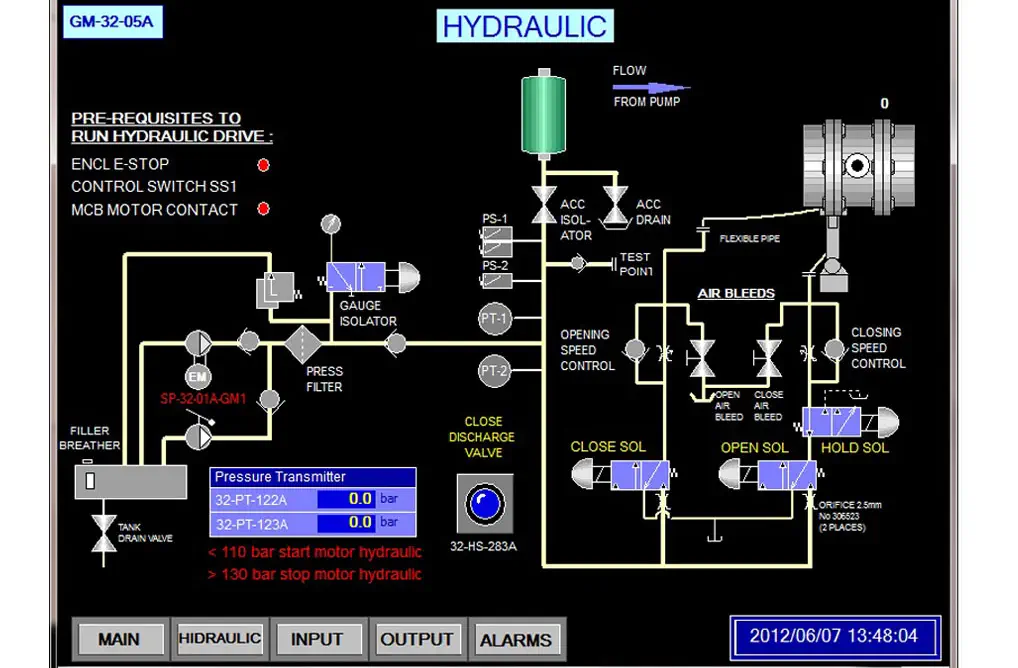

Local Panel Hydraulic View

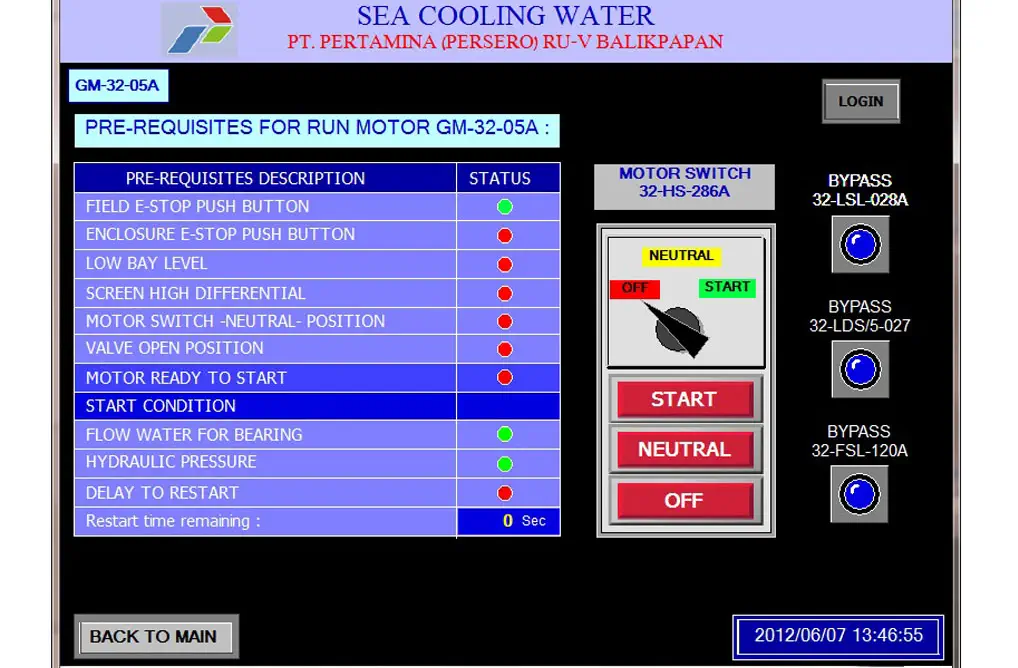

Local Panel Main View

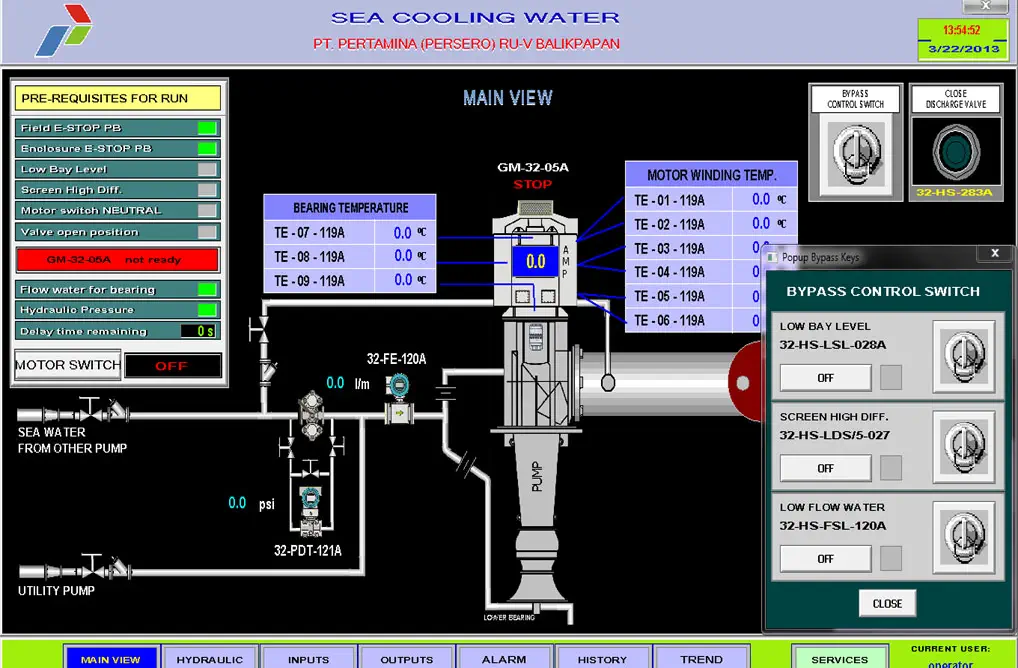

Bypass Switch Control

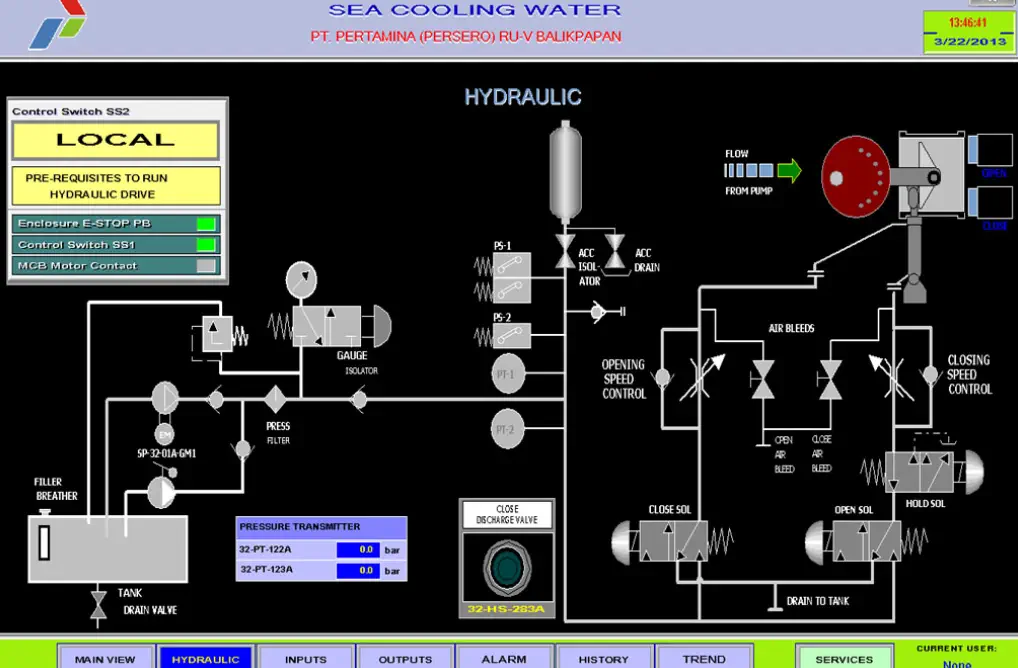

Scada Hydraulic View

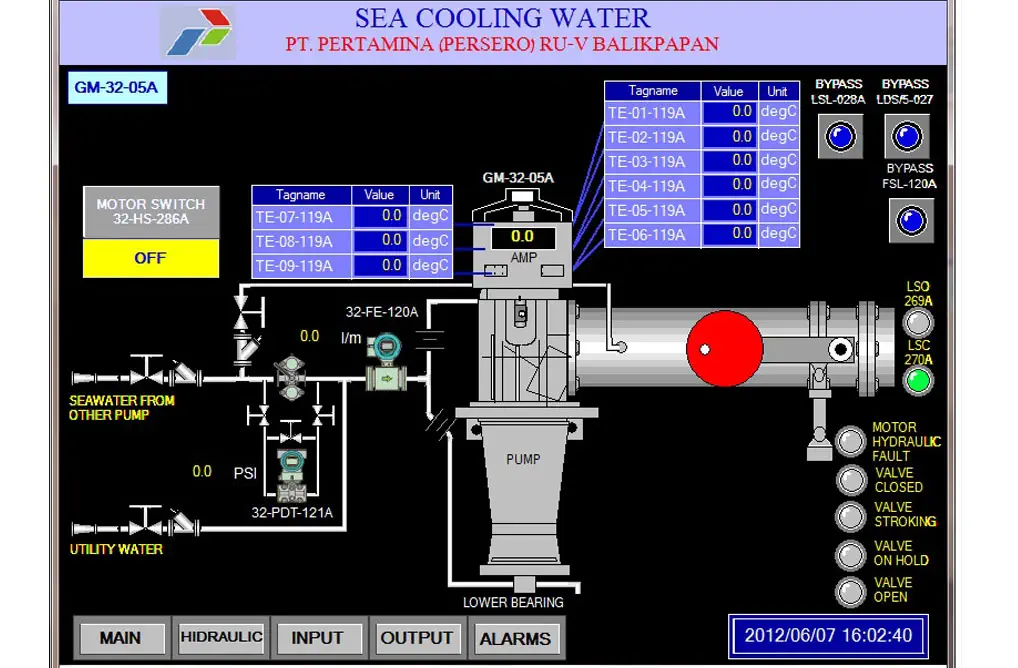

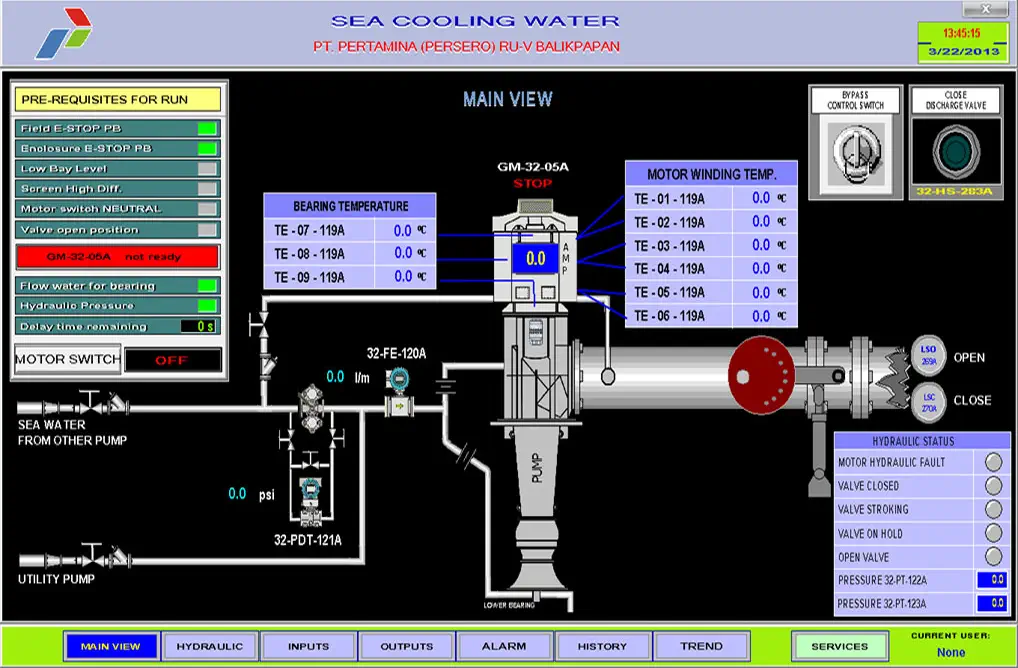

Scada Main view
PLC
System
for
Sea
Cooling
Water
Pump
Controls
3
x
1000KW
with
MV Operation in Refinery Unit V, Balikpapan
