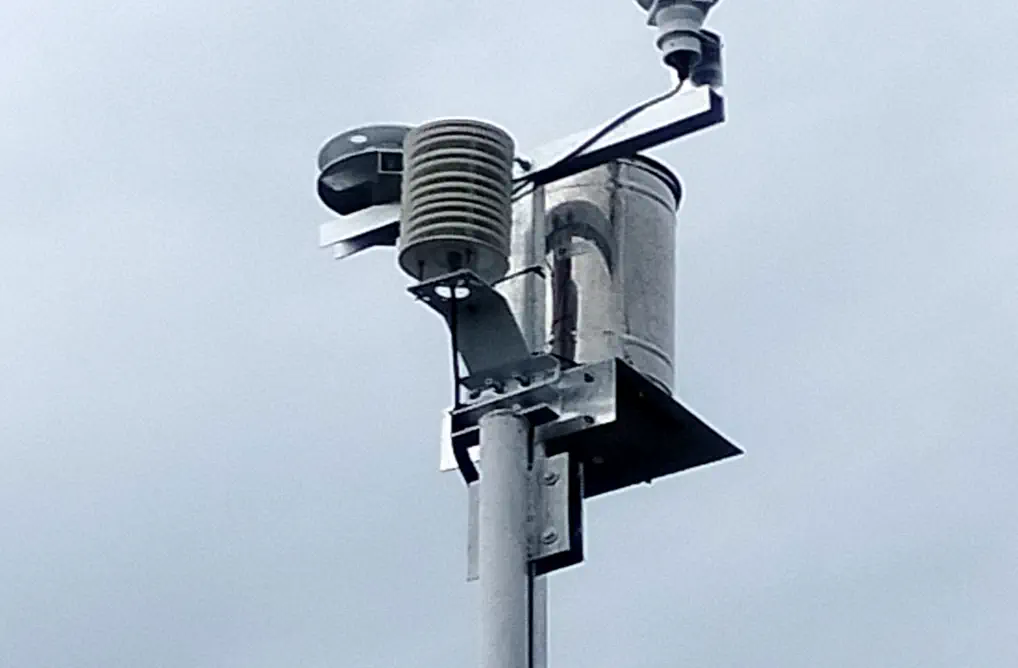

Weather Station

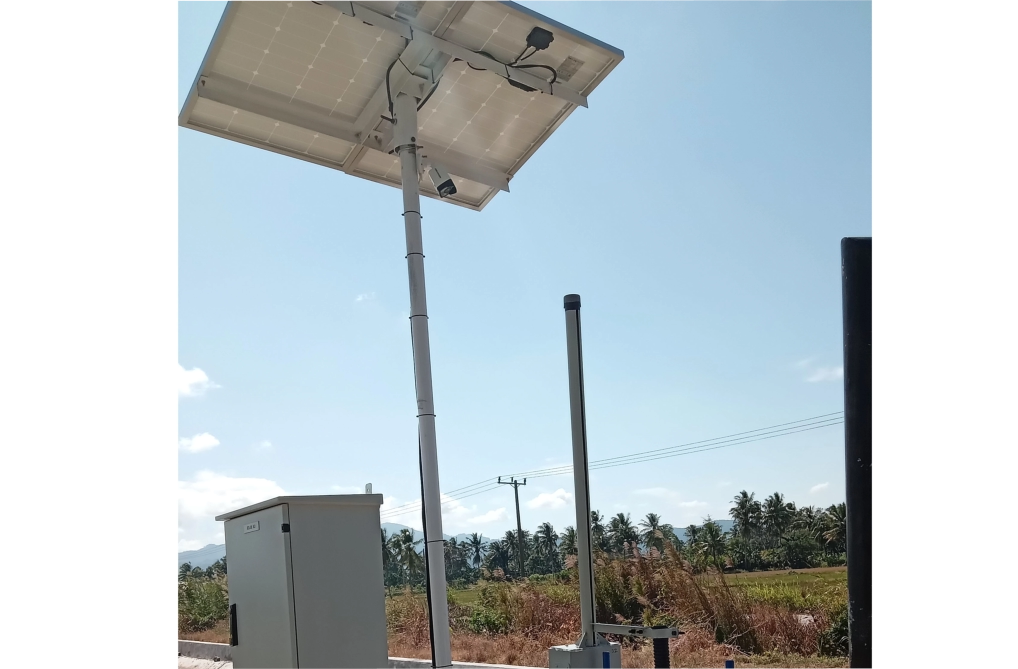

Solar panel and visual sensor
Internal components

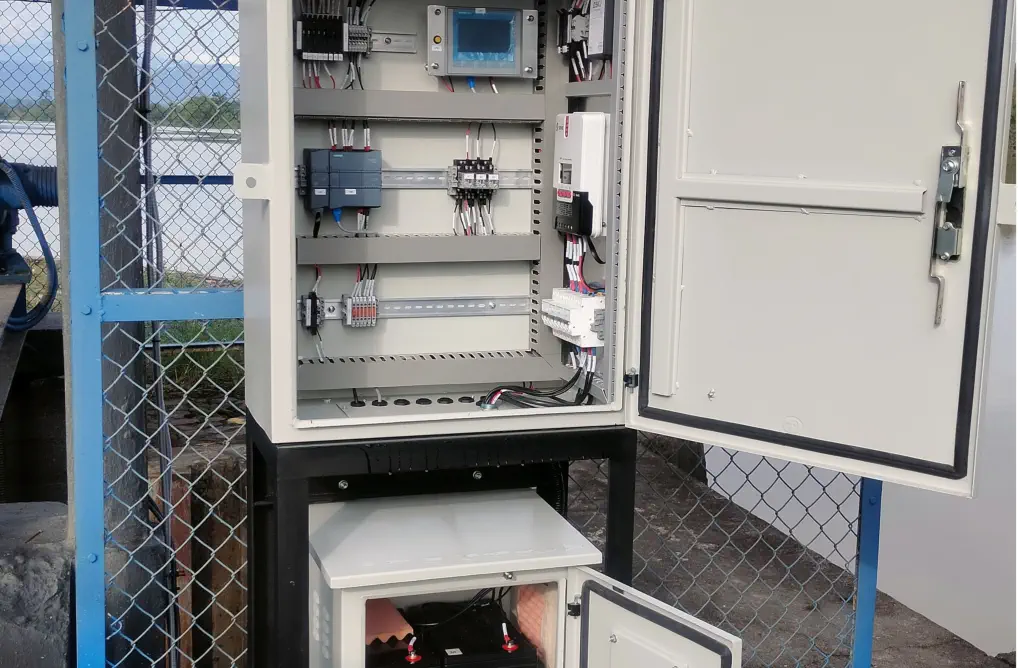

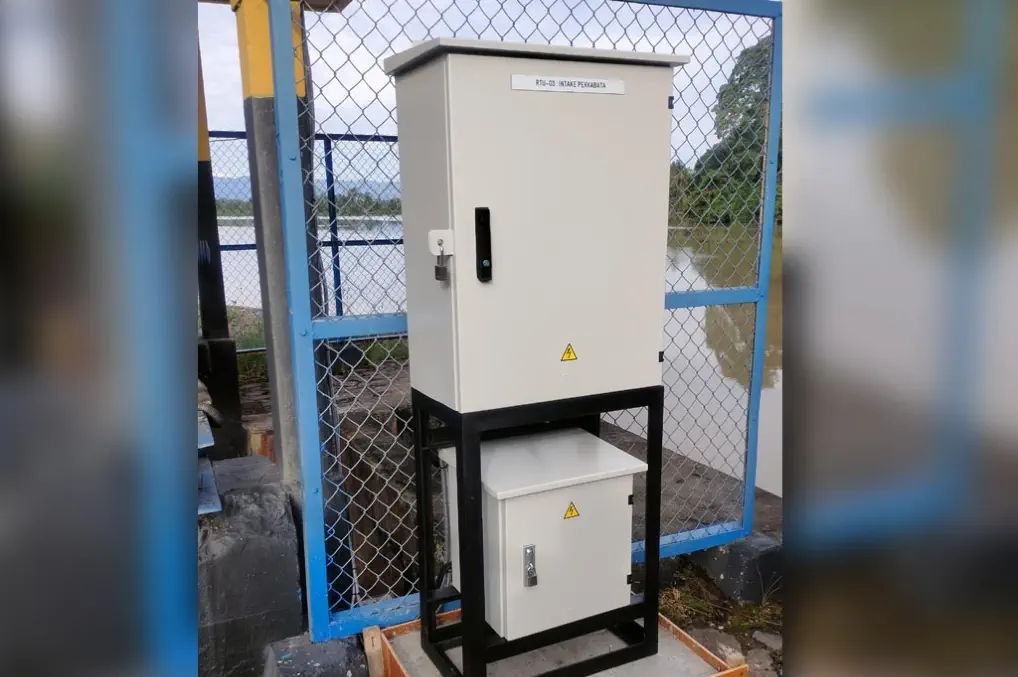

RTU and Backup Battery panel
RTU Station overview

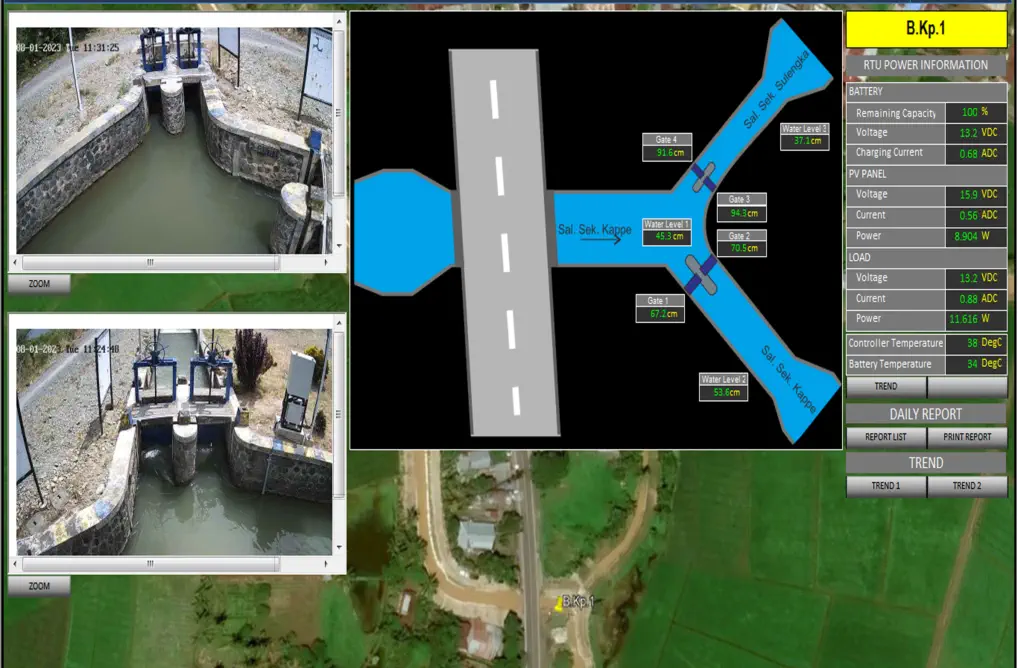

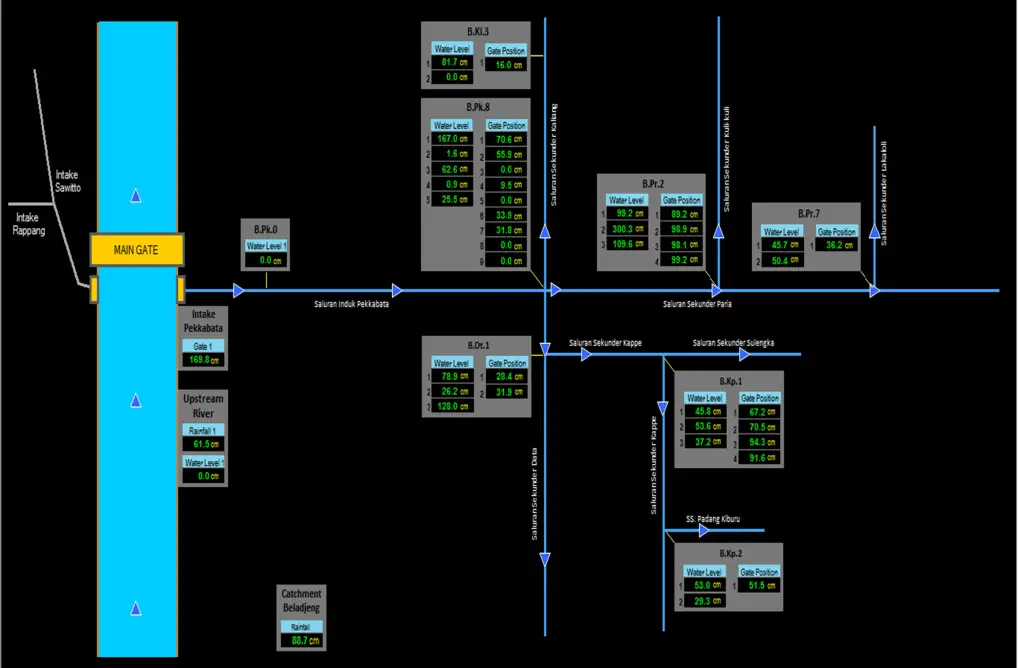

SCADA Overview

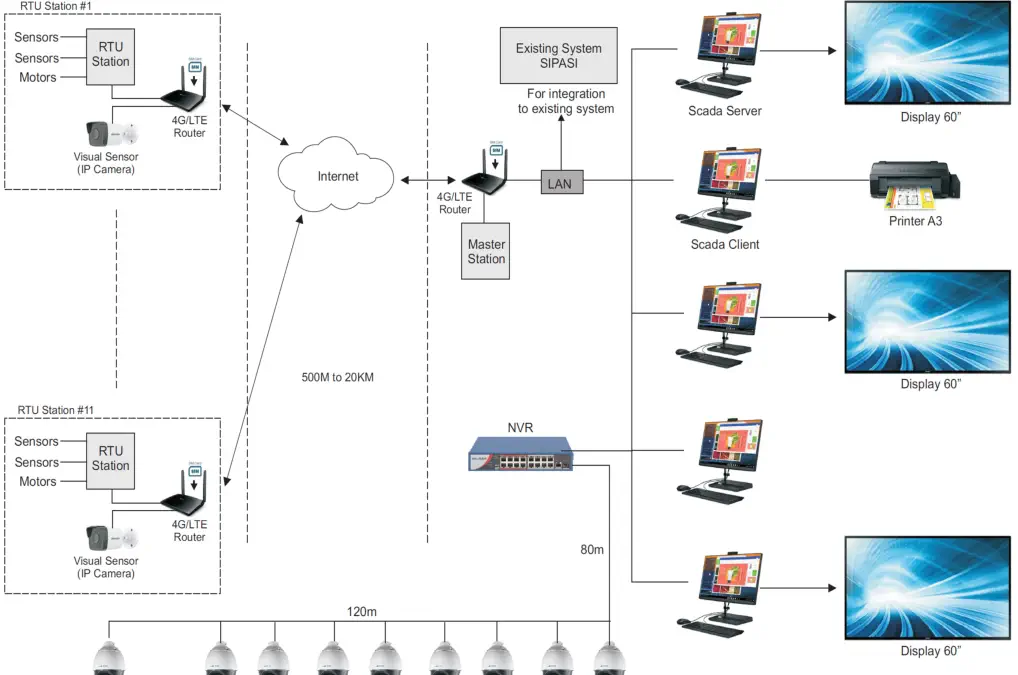

System Layout
Hardware
•
SIEMENS Simatic S7-1200
•
4G Router
•
4" Touch Panel
•
Solar Panel System
•
Backup Battery
•
Gate Position
•
Water Level Sensor
•
Gate Actuator
•
Visual Sensor, CCTV Camera
•
Broadband Network
•
Network Video Recorder
•
Operator Desktop PC and Monitor Screen.
Software
•
SIEMENS Simatic Step7
•
HMI Basic Panel
Scope of Work
Panel Fabrication, Assembly, Wiring, Testing, Program Development, FAT, Installation
and Commissioning Assistance.
Location
Pinrang, South Sulawesi
Irrigation
Gate
Monitoring
and
Control
System
(IoT
Telemetri
SCADA)
