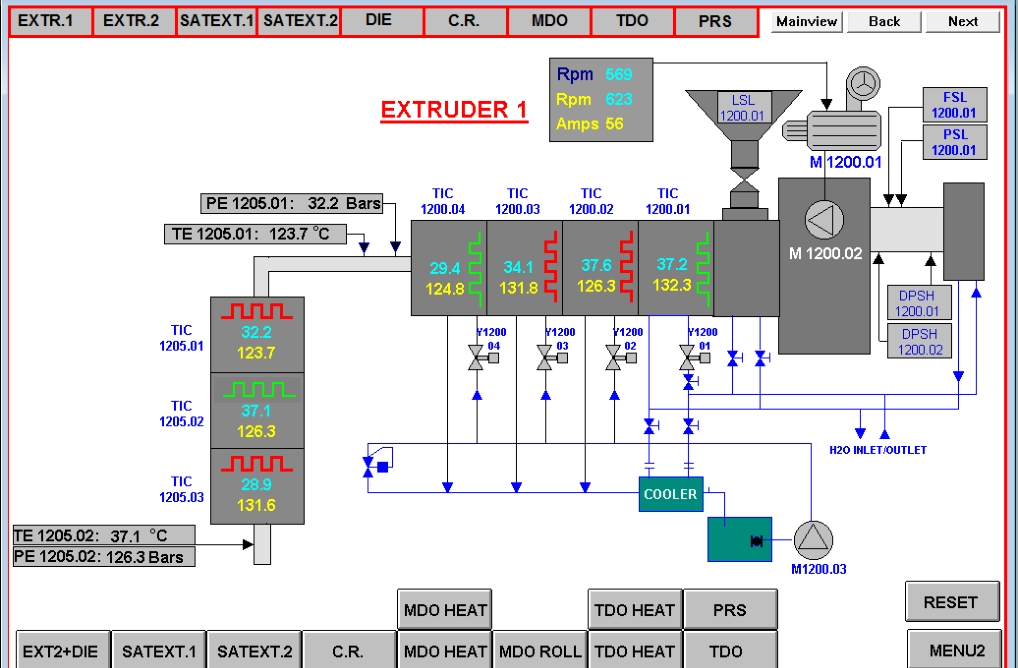

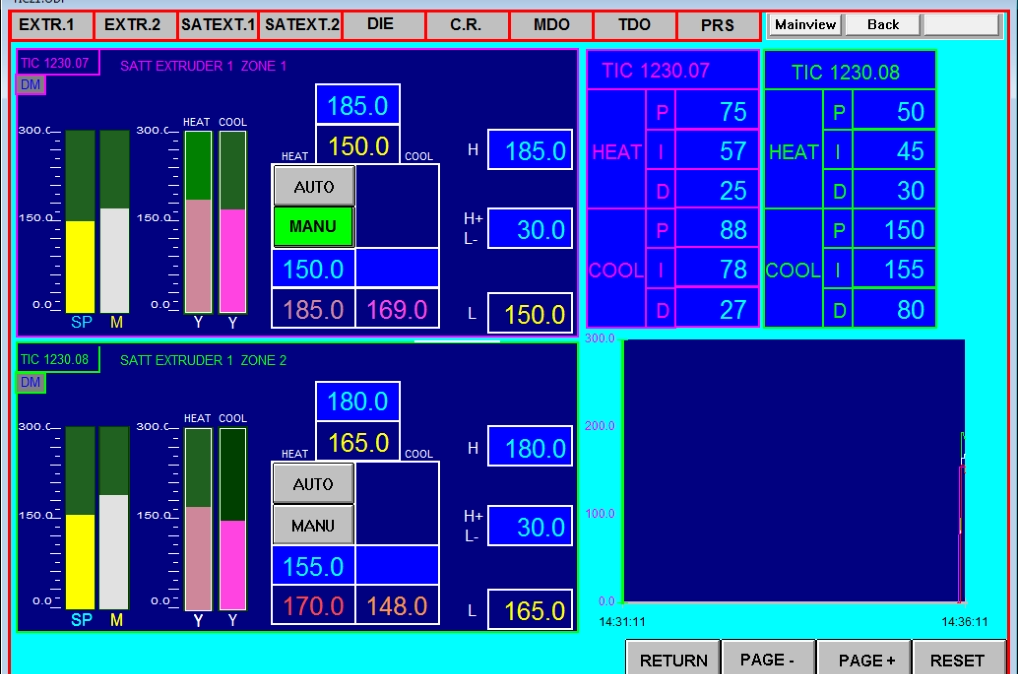

Extruder 1
Mainview
SYSTEM ARCHITECTURE
Hardware
•
4 Telemechanique TSX-87 PLCs (3000 I/O)
•
XBT Operator Consoles 14” with Touch screen,
•
2 XBT Text Display Units
•
PLC Cabinet
Software
•
3 Intellution SCADA Systems + 3 PCs with 21” Monitors
•
Distributed Networking Hardware 5000 I/O Tags
•
Receipt
Package,
Production
Report
in
MS
EXCEL,
MODBUS
PROTOCOL
for
Telemechanique
TSX–87
Series
PLCs,
3964r
Protocol
for
SIEMENS
SIMATIC
S5-135
PLCs
Scope of Work
Panel Fabrication, Assembly, Wiring, Testing, Program Development, FAT, Installation,
SAT and Commissioning.
Location
Surabaya, East Java

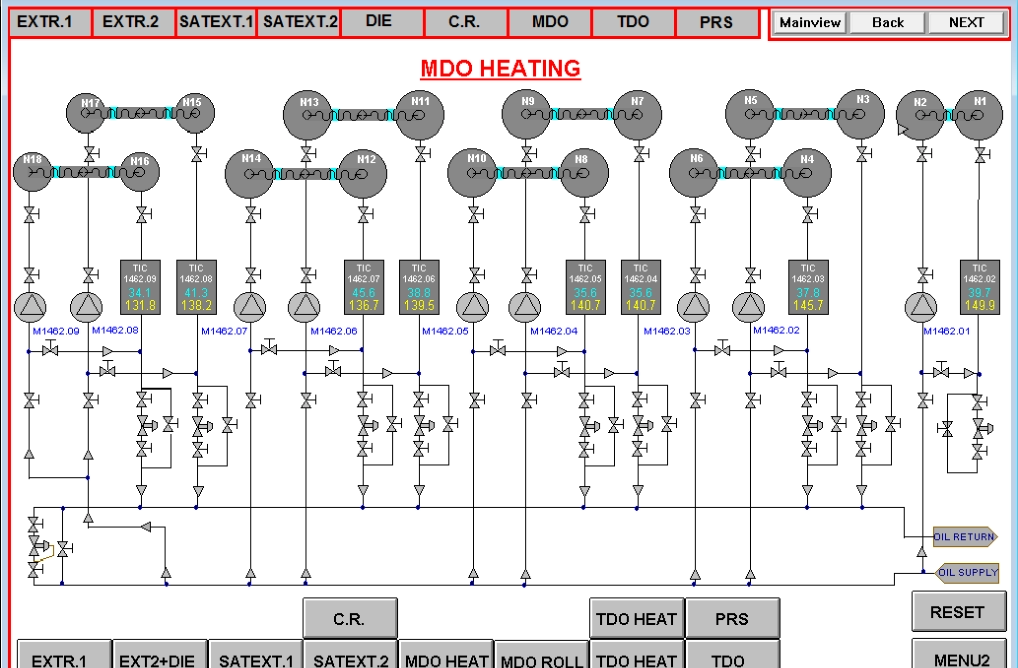

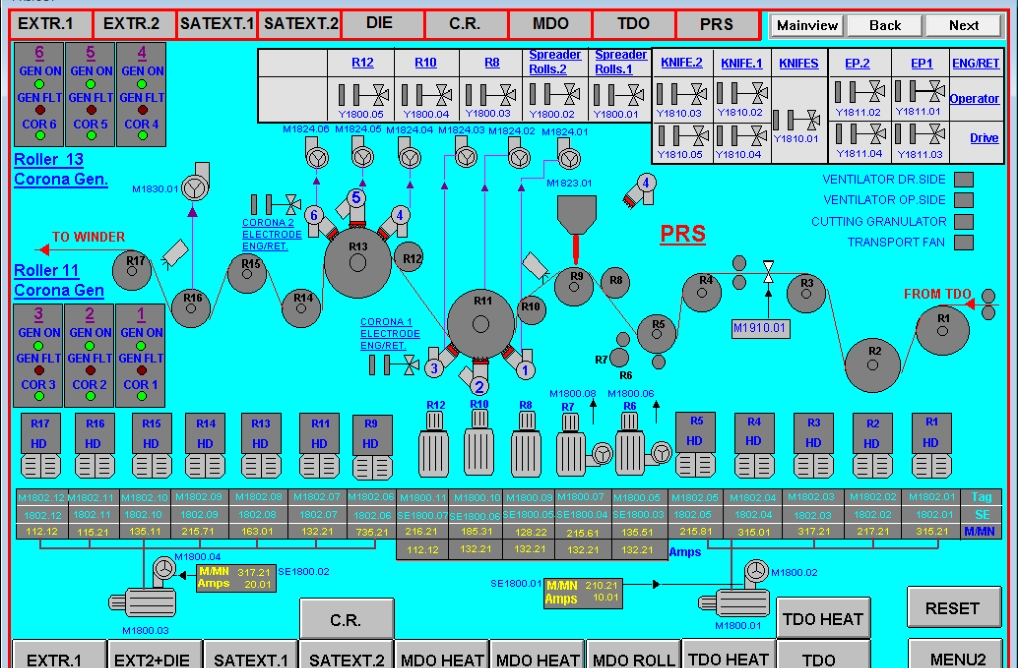

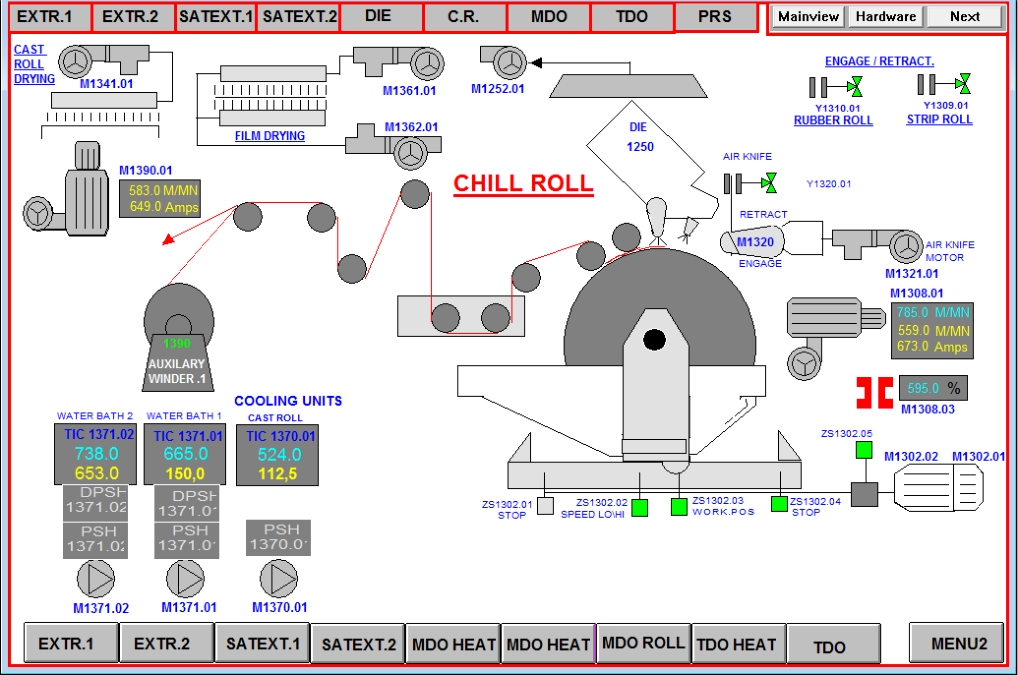

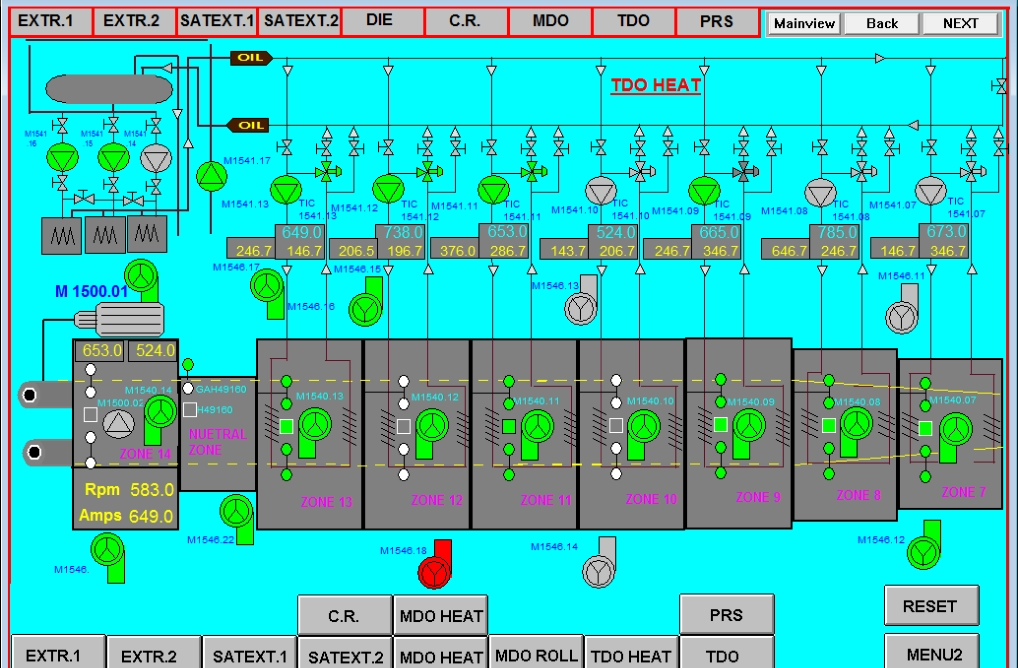

Process Control System for Polypropylene Film Industry
Copyrights and designed by PT. IndoSCADA Perkasa Jaya

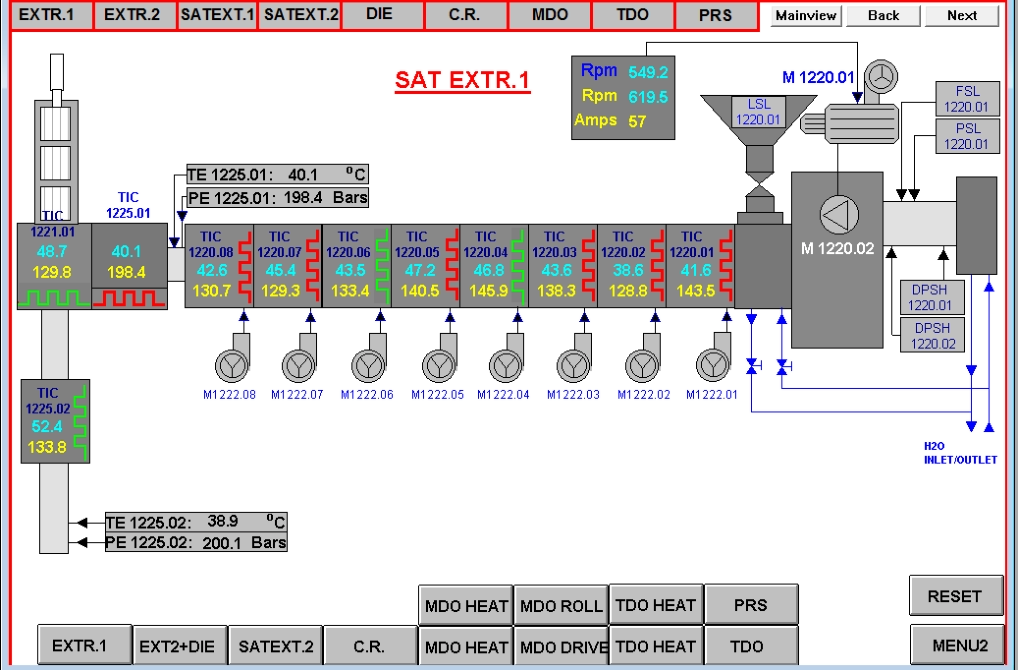

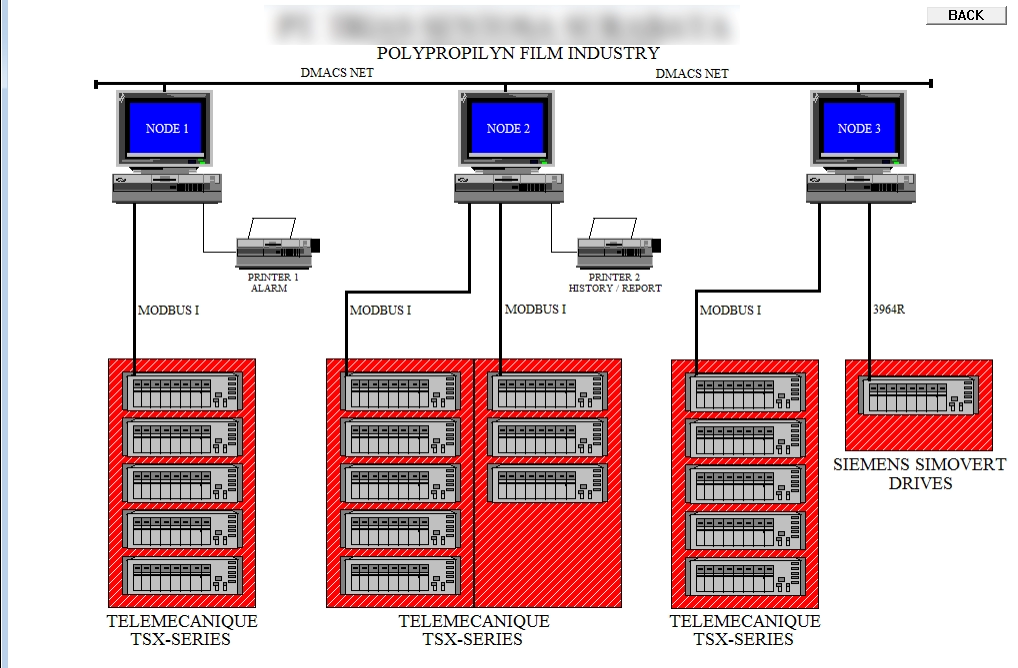

SYSTEM ARCHITECTURE
Hardware
•
4 Telemechanique TSX-87 PLCs (3000 I/O)
•
XBT Operator Consoles 14” with Touch screen,
Software
•
3 Intellution SCADA Systems + 3 PCs with 21” Monitors
•
Distributed Networking Hardware 5000 I/O Tags
•
Receipt Package, Production Report in MS EXCEL, MODBUS PROTOCOL for
Telemechanique TSX–87 Series PLCs, 3964r Protocol for SIEMENS SIMATIC S5-135
Scope of Work
Panel Fabrication, Assembly, Wiring, Testing, Program Development, FAT, Installation,
SAT and Commissioning.
Location
Process Control System for Polypropylene Film Industry
